16” X 13-1/8”, CL2500, Side Entry Check Valve
16” X 13-1/8”, CL2500, Side Entry Check Valve
The full port 16″ CL2500 side entry check valve represents CORTEC’s dedication to exceeding customer requirements. This side entry check valve adheres to the latest design standards of API 6A and 6D. This particular valve incorporates ISO 27509 (Norsok L-005) end connections but can support API and API OEC connections dependent upon customer applications. Our detailed processes of Design, Manufacturing, and Quality Inspection, in accordance with API Q1, ensure that the 16″ CL2500 check valve adheres to our Product Design Requirements driven by API 6A, ASME BPVC, and Finite Element Analysis before the valve is released to production.
This metal-seated design includes a disc and seat that are ground and lapped to a precision finish for bubble-tight sealing exceeding the requirements of API 6A 3G and ISO 5208. The check valve is designed for low-pressure cracking at 0.25 psi to ensure efficient flow. The internal supports of the shaft and disc are tightly guided to prevent dragging and seat damage to ensure a full-opening check valve.

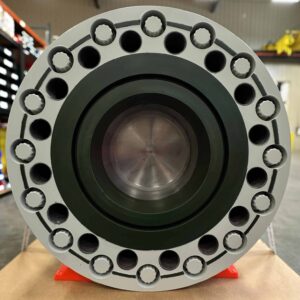

Entry Side
Exit Side
The alloy and stainless steel materials of construction for this 13-1/8″ bore check valve are NACE rated, providing the longevity of a CORTEC valve’s 25-year plus design life criteria. The CL2500 is a 6FA fire-safe design and can be monogrammed to meet 6A and 6D specifications. It is capable of exceeding the requirements of API 6A PSL 3G and API 6D QSL 3G, thus demonstrating the superior design standards that CORTEC consistently aims for and achieves regularly.
In conclusion, the 16″ X 13-1/8″ CL2500 side entry check valve exemplifies CORTEC’s commitment to delivering high-integrity solutions that meet or exceed rigorous industry standards. With its advanced engineered features and robust manufacturing, this valve not only provides optimal performance and reliability but also ensures safety and efficiency in your operation. The careful attention to detail throughout its manufacturing process underscores CORTEC’s dedication to exceeding customer expectations and promoting longevity in its products.
For unmatched reliability, contact our CORTEC valve experts today. We have the solutions you need to fulfill your operational requirements confidently.
